Vasculum Molae Planetariae Carbidi Tungsteni
Applications
Tungsten carbide ball mill jar is used as grinding
jar of planetary ball mill matched with tungsten carbide balls, which is
suitable for grinding materials in high hardness such as hard alloy
powder, diamond powder, and silicon carbide powder

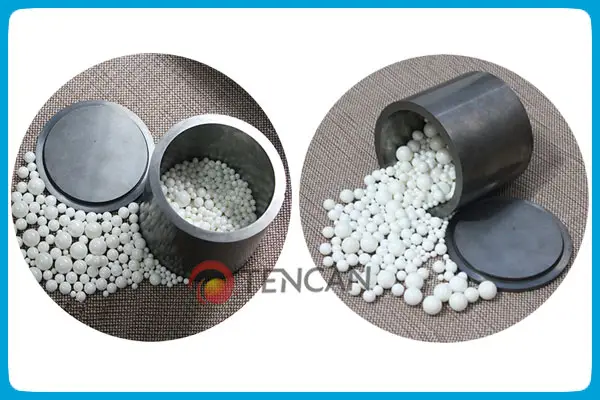

Overview
Tungsten carbide ball mill jar is used as grinding jar of planetary ball mill matched with tungsten carbide balls, which is suitable for grinding materials in high hardness such as hard alloy powder, diamond powder, and silicon carbide powder.

Pluma / Commodum
1. High temperature resistance: The Maximum temperature which it bears can be amounted to 1000 centigrade.
2. High wearing resistance even at temperature of 500 centigrade.
3. High hardness: super high hardness is the key factor of tungsten carbide mill jar.
4. Strong toughness: not only it owns high hardness, but also good toughness.
Data Sheet
| Parameters of Planetary Tungsten Carbide Mill Jar | ||||||
| Volumen Vasis | interiorem Diameter (Mm) |
external Diameter (Mm) |
interiorem Profundum (Mm) |
Altitudo Tegminis Non Contenti (Mm) |
summa Height (Mm) |
Pondus (KG) |
| 50ml | 38 | 49 | 46 | 52 | 56 | 0.9 |
| 100ml | 51 | 63 | 50 | 59 | 63 | 1.7 |
| 250ml | 73 | 85 | 61 | 69 | 75 | 3 |
| 500ml | 90 | 104 | 88.5 | 96 | 103 | 5.3 |
| 1L | 115 | 131 | 98 | 110 | 117 | 9.3 |
| Remarks: Size Deviation within±2mm | ||||||
Accessorium Computabile
| Parameters of Planetary Tungsten Carbide Mill Jar | ||||||
| Volumen Vasis | interiorem Diameter (Mm) |
external Diameter (Mm) |
interiorem Profundum (Mm) |
Altitudo Tegminis Non Contenti (Mm) |
summa Height (Mm) |
Pondus (KG) |
| 50ml | 38 | 49 | 46 | 52 | 56 | 0.9 |
| 100ml | 51 | 63 | 50 | 59 | 63 | 1.7 |
| 250ml | 73 | 85 | 61 | 69 | 75 | 3 |
| 500ml | 90 | 104 | 88.5 | 96 | 103 | 5.3 |
| 1L | 115 | 131 | 98 | 110 | 117 | 9.3 |
| Remarks: Size Deviation within±2mm | ||||||
